Product Overview

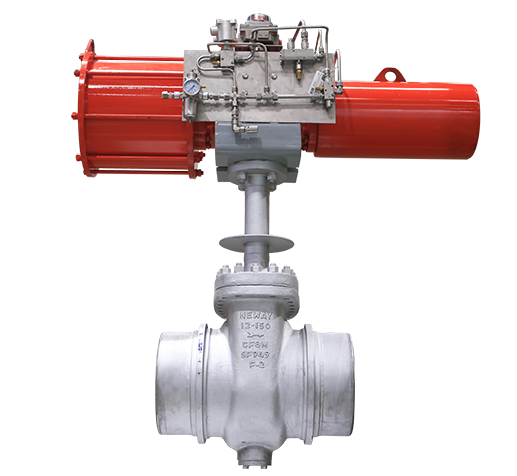

Neway cryogenic offset butterfly valves are designed for minus 196°C. These valves are widely used in LNG, LPG, air separation lines and other low temperature industries. All parts are replaceable and in-line maintenance is available.
Design Features
ISO 5211 Top flange
Self-lubricating bearings, low torque, low friction
Replacable parts
Bi-directional sealing
Double stem anti-blow out design
Low friction and long life design Fire safe design
Stuffing box extended design and fugitive emision packing
Product Range
Size: 8″~56″ (DN200~DN1400)
Pressure Rating: ASME CLASS150~600 (PN16~PN100)
Body Materials: SS
End connection: RF, BW Operation: Manual, Pneumatic, Electric, Hydraulic
