Product Overview

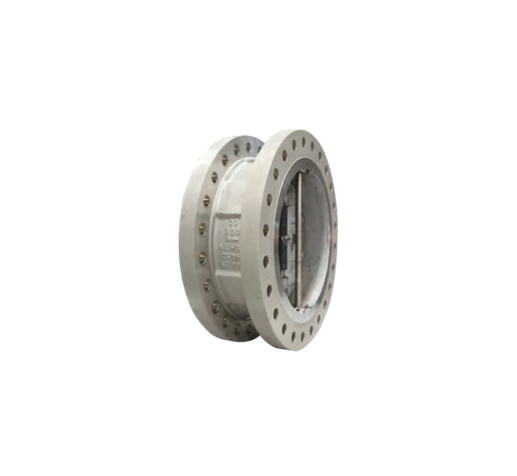

Retainerless dual plate check valves are widely used in flow control industry due to the better flow performance, the smaller installation space, the lighter weight and the easier installation and maintenance. NEWAY dual plate check valve is in compliance with API 594, and supply full production range design for client.
Design Features
Retainerless design
Spring return
Compact structure, small weight, low cost
Soft seat design optional
Product Range
Size: 2″~76″ (DN50~DN1900)
Pressure Rating: Class 150~4500 (PN16~PN760)
Body Material: CS, SS etc.
End connection: RF, LUG, RTJ, W, WJ
