Product Overview

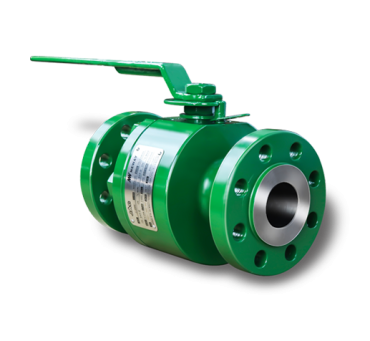

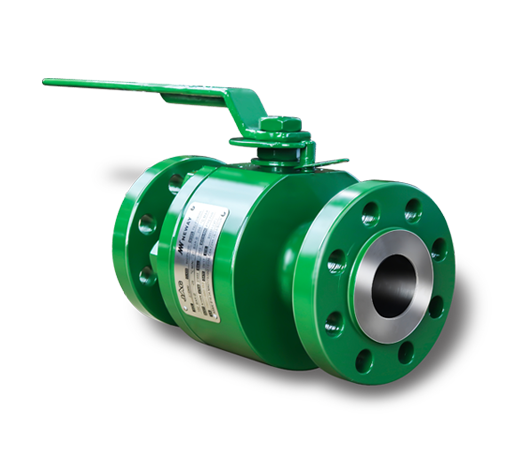

Neway floating ball valve is designed according to ISO 17292, API 608 and API 6D, which serves at working temperature: -196~650°C. API 607 or API 6FA fire-safe certificates have been acquired for all the valves subject to fire safe test witnessed by LR.
Design Features
Full bore or reduced bore
Fire safe certification
Anti-blowout stem
Anti-static device
Bi-directional soft seal
On-off positon indicator
Locking device
Optional fugitive emission design
Product Range
Size: 1/2″~10″ (DN15~DN250)
Pressure Rating: Class 150~2500 (PN16~PN420)
Body Material: CS, SS, Nickel Alloy
Trim Material: CS, SS, Nickel Alloy
End Connection: FLG,NPT,SW,BW Operation: Handle, Gearbox,Pneumatic / Electric Actuator
