Product Overview

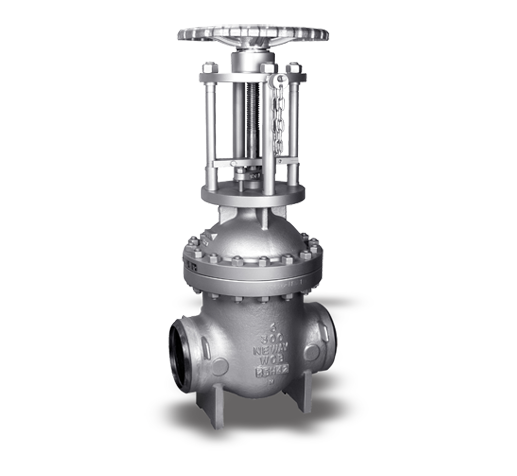

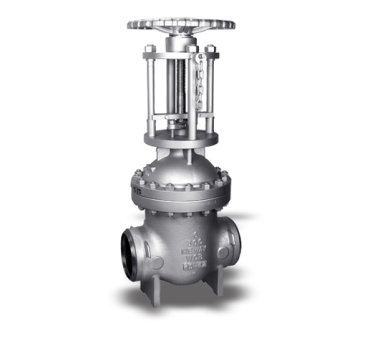

Neway parallel slide gate valves are designed with positional seal, using the line pressure as a sealing force. The compressed spring between the two closure members provides an initial seal during low pressure conditions. The increasing line pressure will push the closure members with higer forces against each other which creates the primary seal. The higher the medium pressure, the better the sealing performance. Therefore this valve type is widely used in high pressure and high temperature services.
Design Features
Free of thermal binding
Low operation torque Precise travel control Interchangable gate, easy for maintenance
Product Range
Size: NPS 1/2″~36″(DN15~DN900)
Pressure Rating: Class 300~4500(PN25~PN760)
Body Material: CS, AS etc.
End Connection: RF, BW, RTJ Operation: Manual, Pneumatic,Electric, Hydraulic
