Product Overview

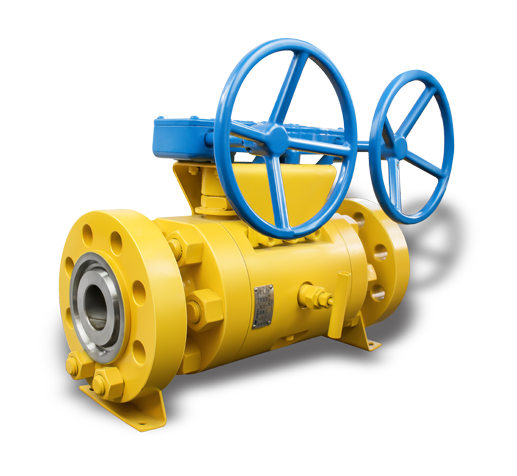

Neway supplies DBB compact manifold ball valves which are equipped with two balls in one body. The series can be designed in three-piece, long or custom- ized pattern to satisfy the different installation requirements.
DBB compact manifold ball valve design reduces the weight and space compared with installing two conventional valves when it achieves safer application. These valves are usually applied in marine and offshore industry.
Design Features
Long or customized pattern to fulfill requests
Fire safe design
Anti-blowout stem
Anti-static device
Light weight
Fugitive emission
Product Range
Size: 2″~24″ (DN50~DN600)
Pressure Rating: ASME CLASS 150~2500 (PN16~PN420)
Body Material: CS, SS etc.
End Connection: FLG etc.
Operation: Manual, Pneumatic, Electric, Hydraulic etc.
